White Galvanized Nor Standard Link Chain
- Brand WEIDELI
- Product origin LINYI
- Delivery time 15 days after confirm order
- Supply capacity 500 tons per month
White Galvanized Nor Standard Link Chain is produced by automatic assembly line. The factory have more than 60 advanced automatic assembly linke, 10 semi-automatic assembly lines, flush type chain braiding machine, lateral chain braiding machine, renewal holder-on welder, full-automatic welder, semi-automatic press welder, hand welder and so on.
The diameter of White Galvanzied Nor Standard Link Chain ranges from 3.5MM to 19mm. And surface treatment is white galvanized. This kink of products can be packed in plastic reel, gunny bag, plastic drum or wooden cases. Length can packing can be as your requirement.

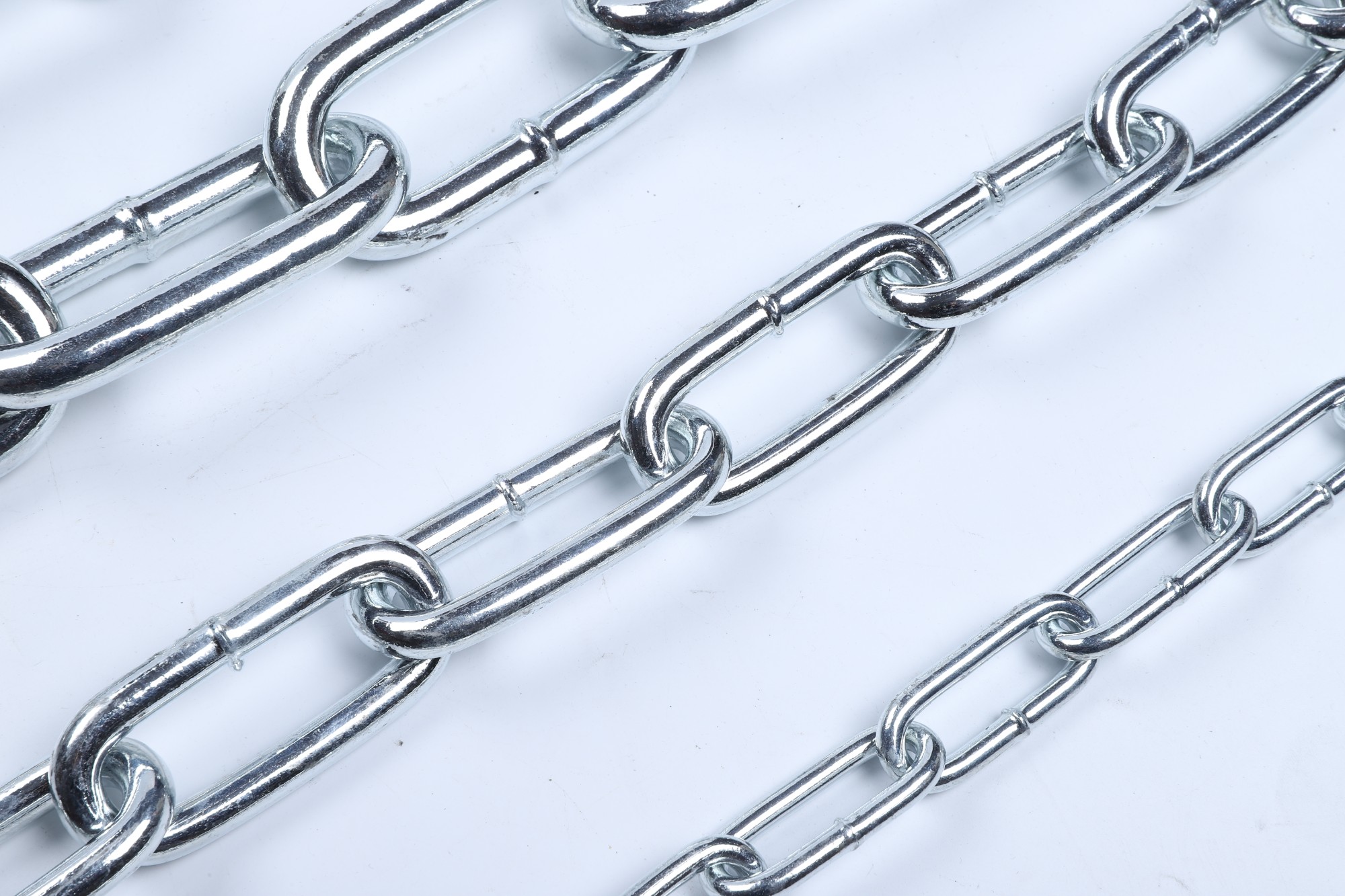

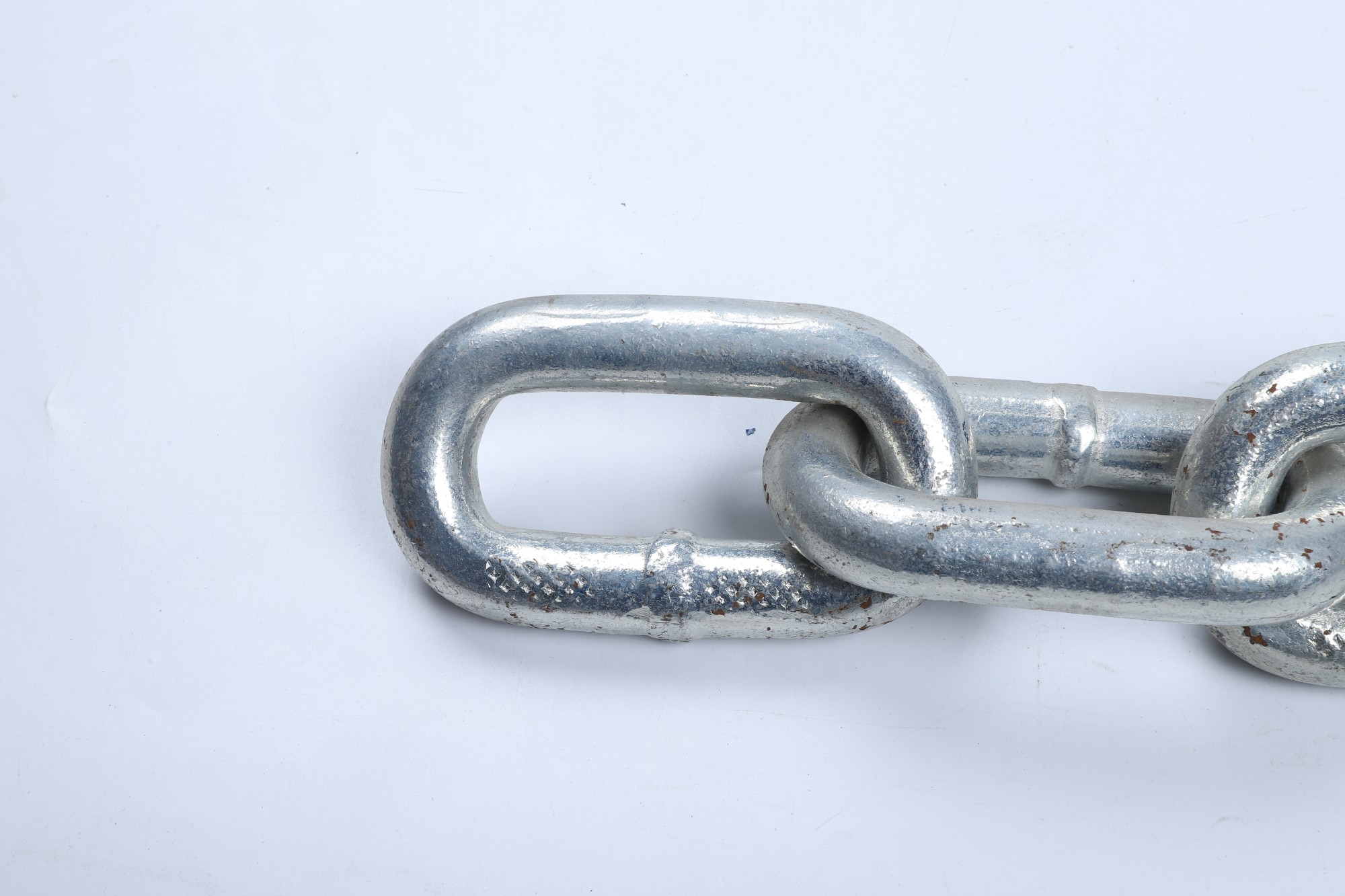

White Galvanized Nor Standard Link Chain
Technical Data
| SIZE/MM | INSIDE LENGTH/MM | INSIDE WIDTH/MM | WEIGHT PER MT | BREAKING LOAD | LENGTH PER PC |
| 3.5 | 18.0 | 5.5 | 0.25 | 500 | 100 |
| 5.0 | 22.0 | 8.5 | 0.50 | 1000 | 100 |
| 6.5 | 24.0 | 10.0 | 0.85 | 1500 | 50 |
| 8.0 |
25.0 |
11.0 | 1.35 | 2500 | 50 |
| 10.0 | 32.0 | 13.0 | 2.10 | 4000 | 30 |
| 11.0 | 35.0 | 16.0 | 2.55 | 5000 | 30 |
| 13.0 | 39.0 | 18.0 | 3.70 | 5400 | 30 |
| 16.0 | 48.0 | 23.0 | 5.70 | 10000 | 30 |
| 19.0 | 57.0 | 27.0 | 8.00 | 14000 | 30 |
Packing
Gunny Bag, Iron Drums, Wooden Case, Plastic drums, Cartonns, Woven Bags and so on.
The Surface Treatment:
White/Yellow Galvanized, Blue-white galvanized, Hot Dipped Galvanized, Black Painted, Spraying Plastics, Polished and Anti-rust oil.

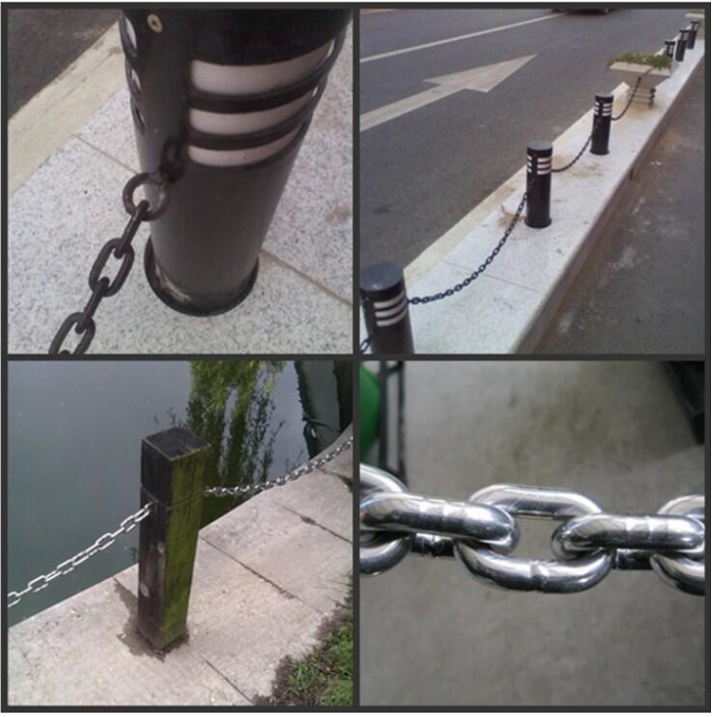

Usage:
White Galvanized Nor Standard Link Chain is widely applied to ships, jack-up, wharf drag, dundle up, anti-slip, nets down, home decoration, public protection, mining, cement equipment, municipal engineering, garden prnament etc.
