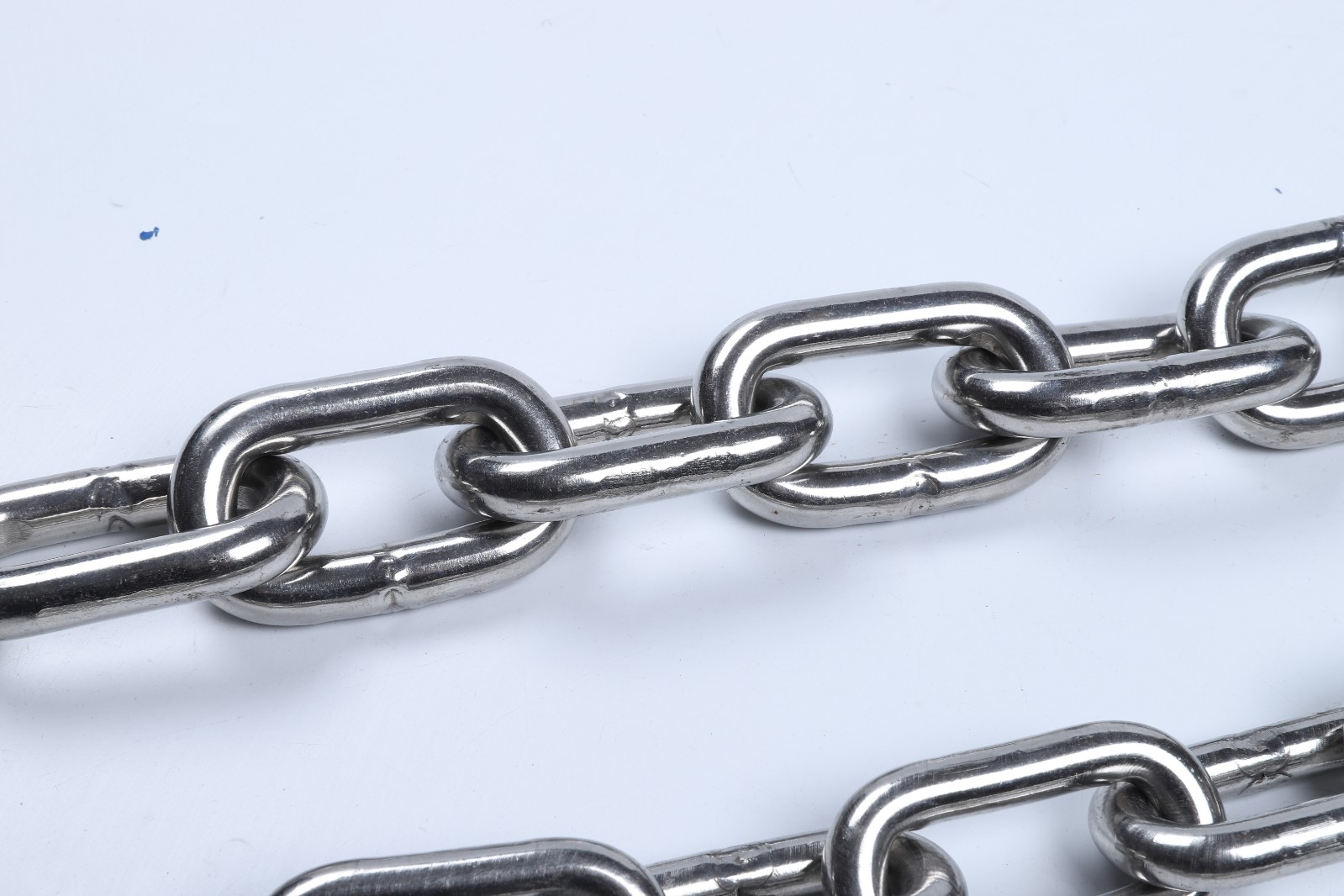

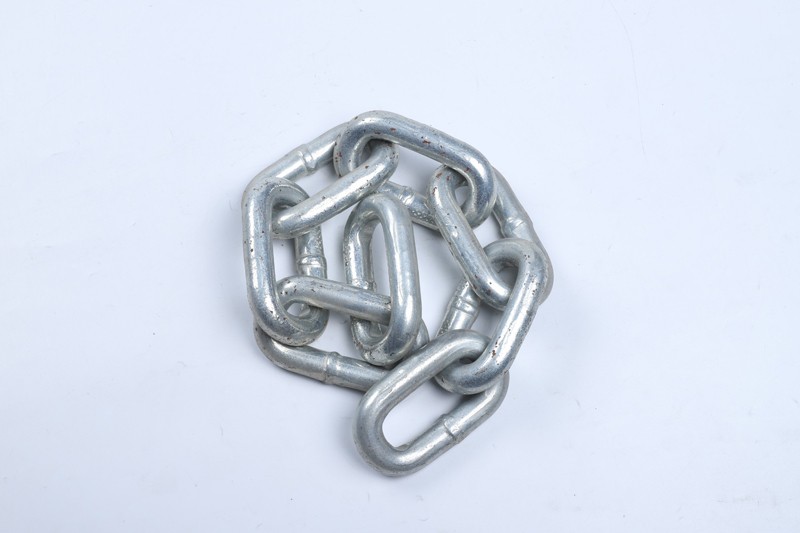

G30 Steel Welded Medium Link Chain
- Brand WEIDELI
- Product origin LINYI
- Delivery time 15 days after confirm order
- Supply capacity 600 tons per month
G30 Steel Welded Medium Link Chain are widely applied to ships, jack-up wharf drag, bundle up, anti-slip, netts down, home decoration, public protection, mining, cement.
Our welding machines are keeping improved ( the welding part is substance, smooth, and artistic); The semi-automatic galvanization technology makes sure that the zinc plate is thick and bright enough, which can keep good condition for long time. From these points, our medium link chain will get away from rusty or cut off problems.
G30 Medium Link Chain:
Brief Introduction:
Finish: ZINC
Place of Prigin: Linyi
Model Number: G30
Brand Name: Weideli
Structure: welded chain
Function: general use
Standard or Nonstandard: Standard
Material: Carbon Steel
Size: 2mm-25mm
Surface treatment: zinc galvanized
Type: Short link chain
Packing: sack bags, wheels, cartons etc.
Technical Data:
| Link Specification |
Test Load |
Breaking Load |
Net WT Per 200FT (KG) |
||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | B.F | H.D.G |
| 1/8 | 3.20 | 20 | 12 | 200 | 400 | 10.80 | 11.00 |
| 5/32 | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| 3/16 | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| 7/32 | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| 1/4 | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| 5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| 3/8 | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| 7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| 1/2 | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| 5/8 | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| 3/4 | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| 7/8 | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| 1 | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
Here is the Production process:

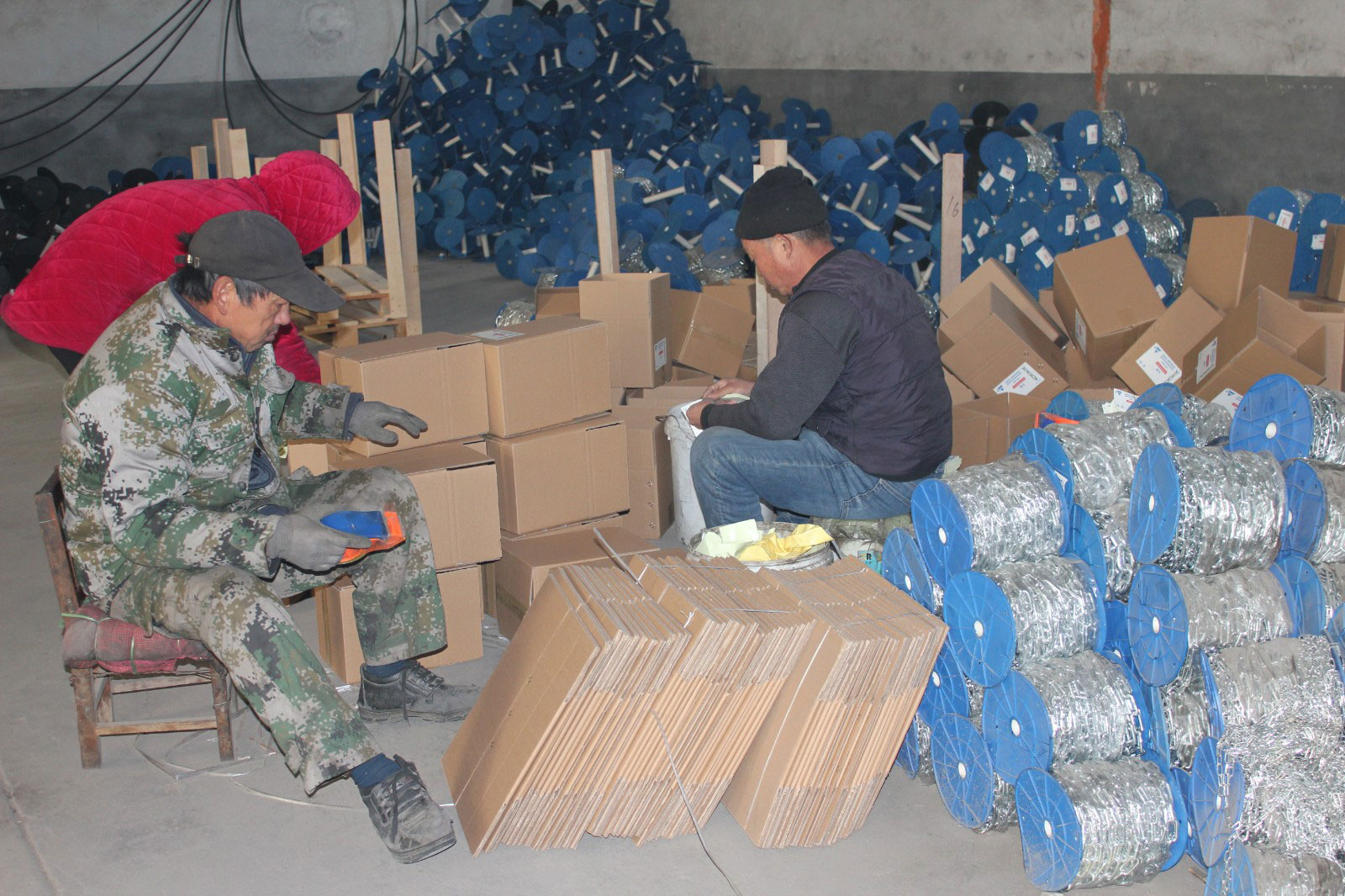

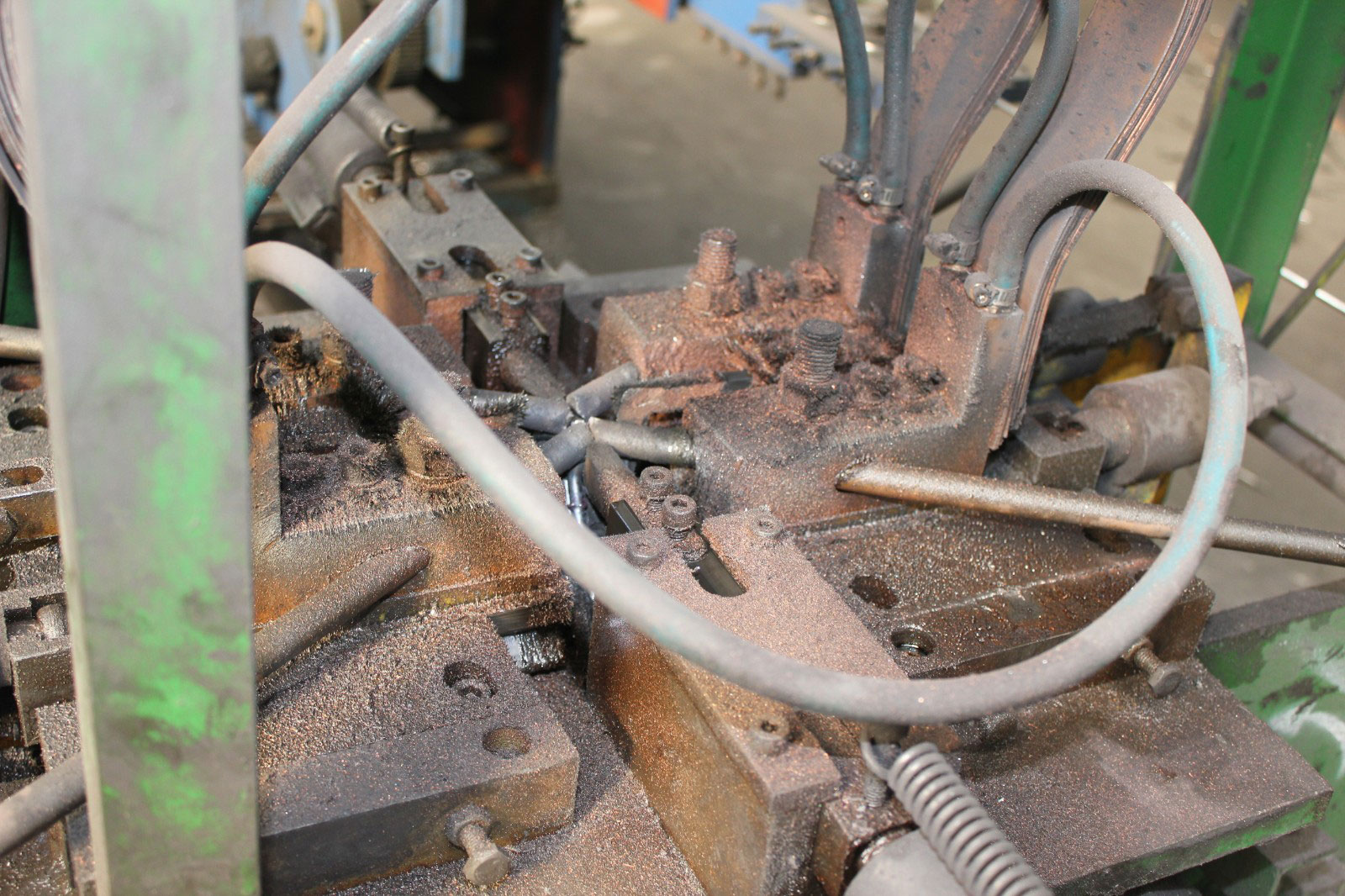

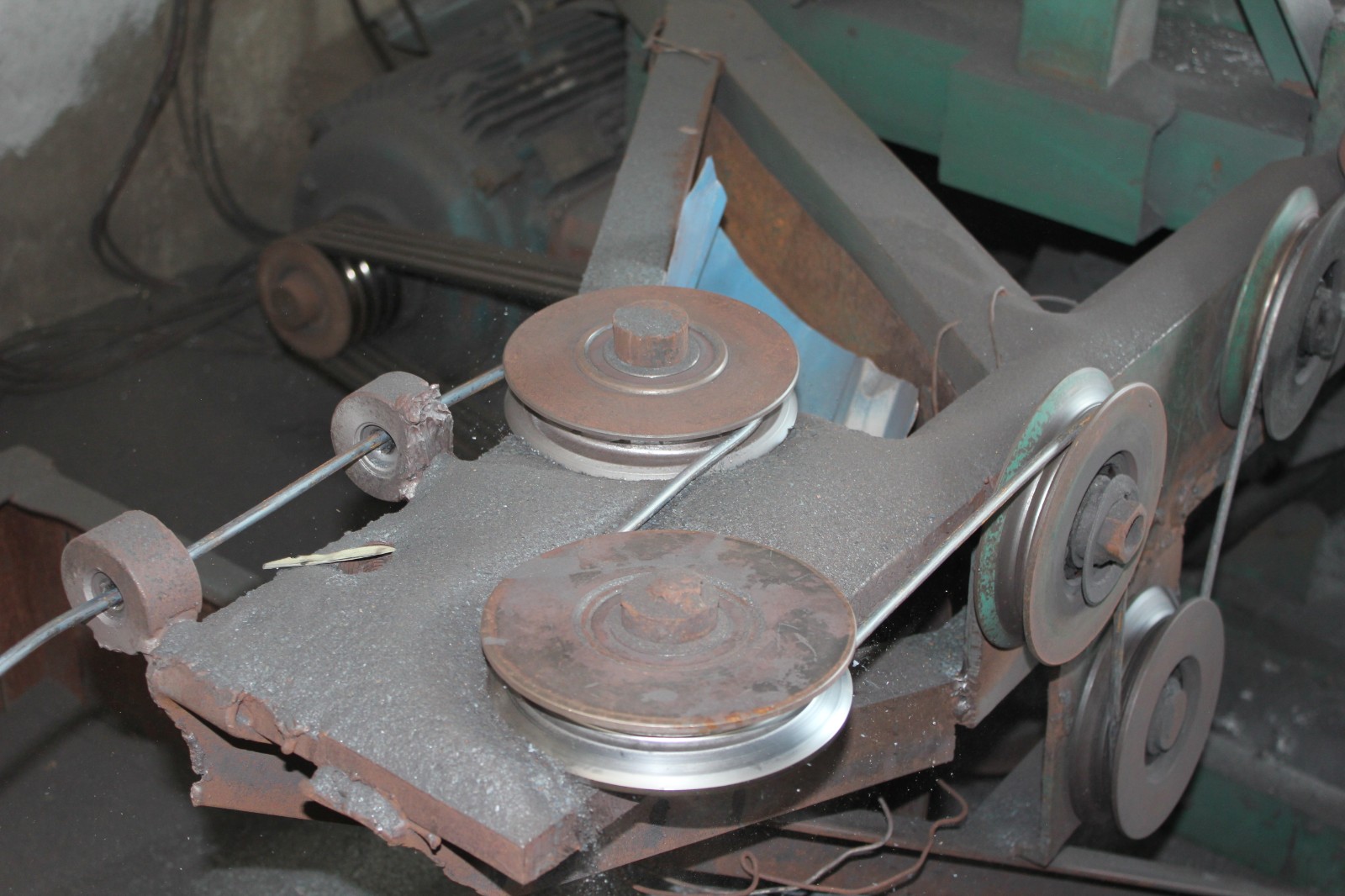

raw material-drawing-cutting-braiding-welding-galvanizing-inspecting & packing-loading.

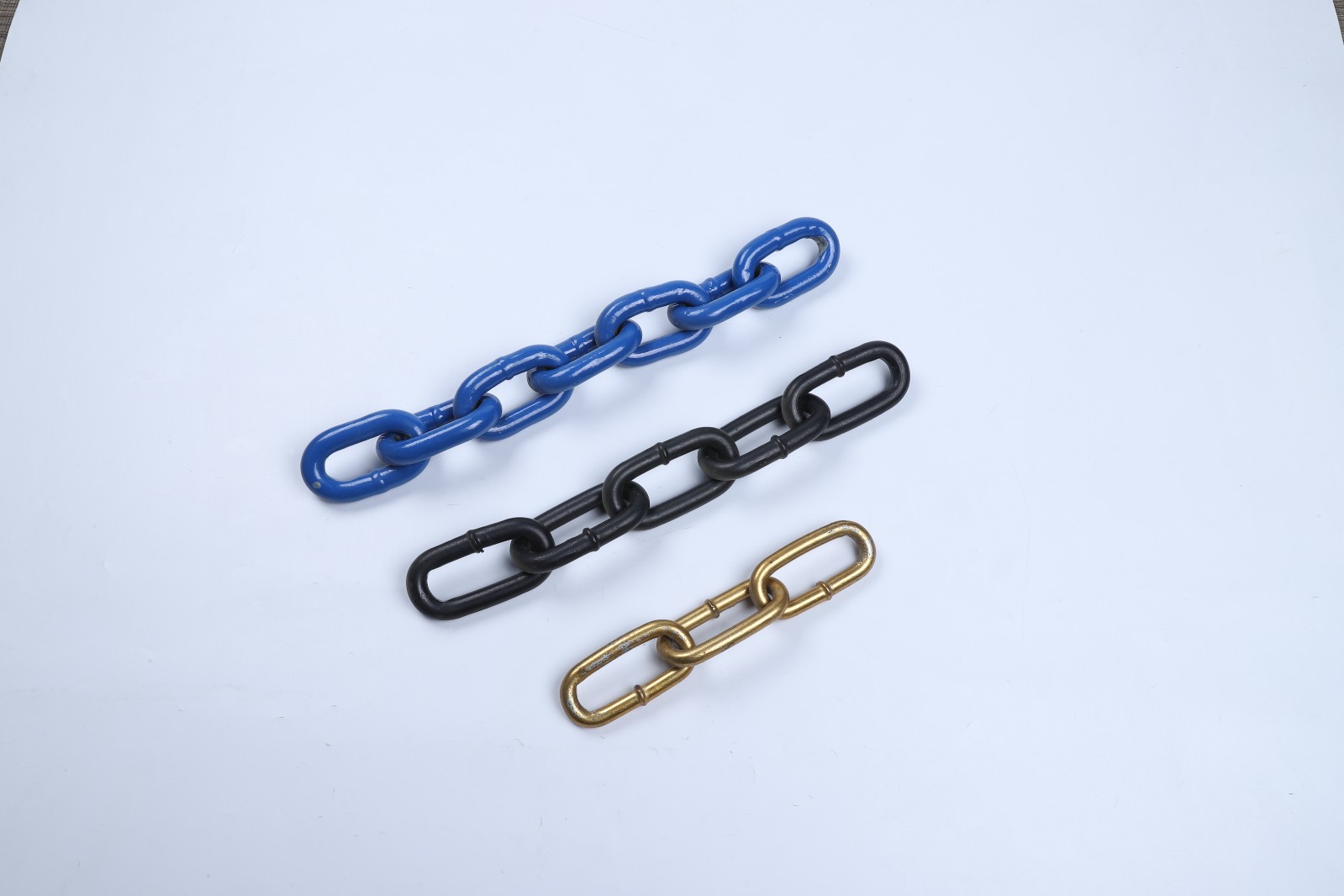

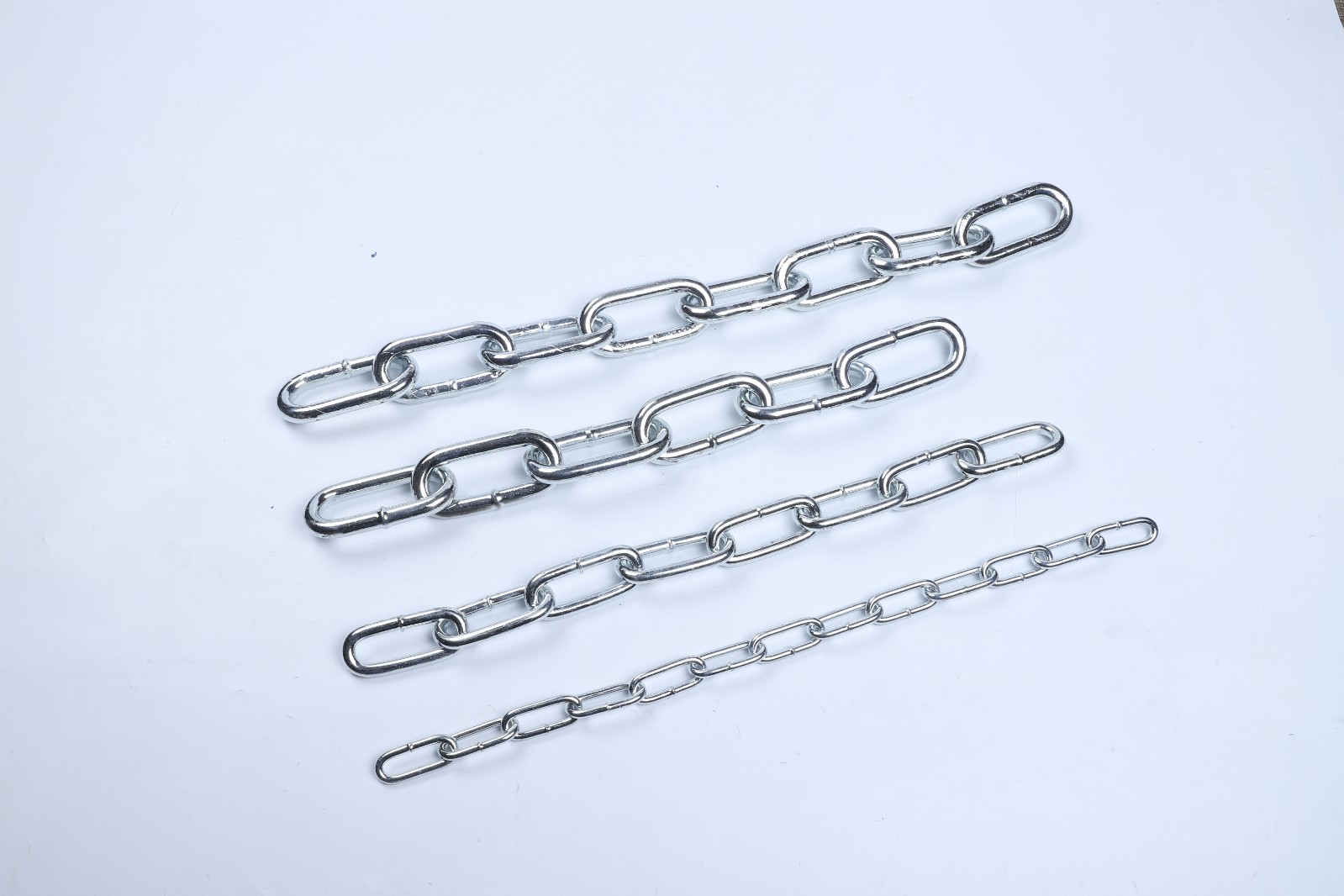

The surface treatments can be as following: white/yellow galvanized, blue-white galvanized, hot dipped galvanized, black painted, spraying plastics, polish or using anti-rust oil.

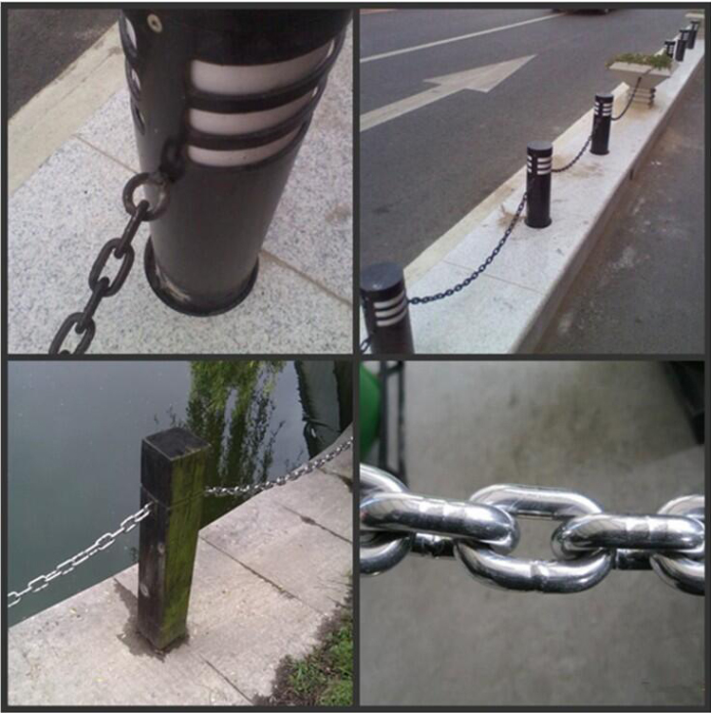

G30 Medium Link Chain are widely applied to ships, jack-up, wharf drag, bundle-up, anti-slip, nets down, home decoration, public protection, mining, cement equipemnt, municipal engineering, garden prnament, etc.
