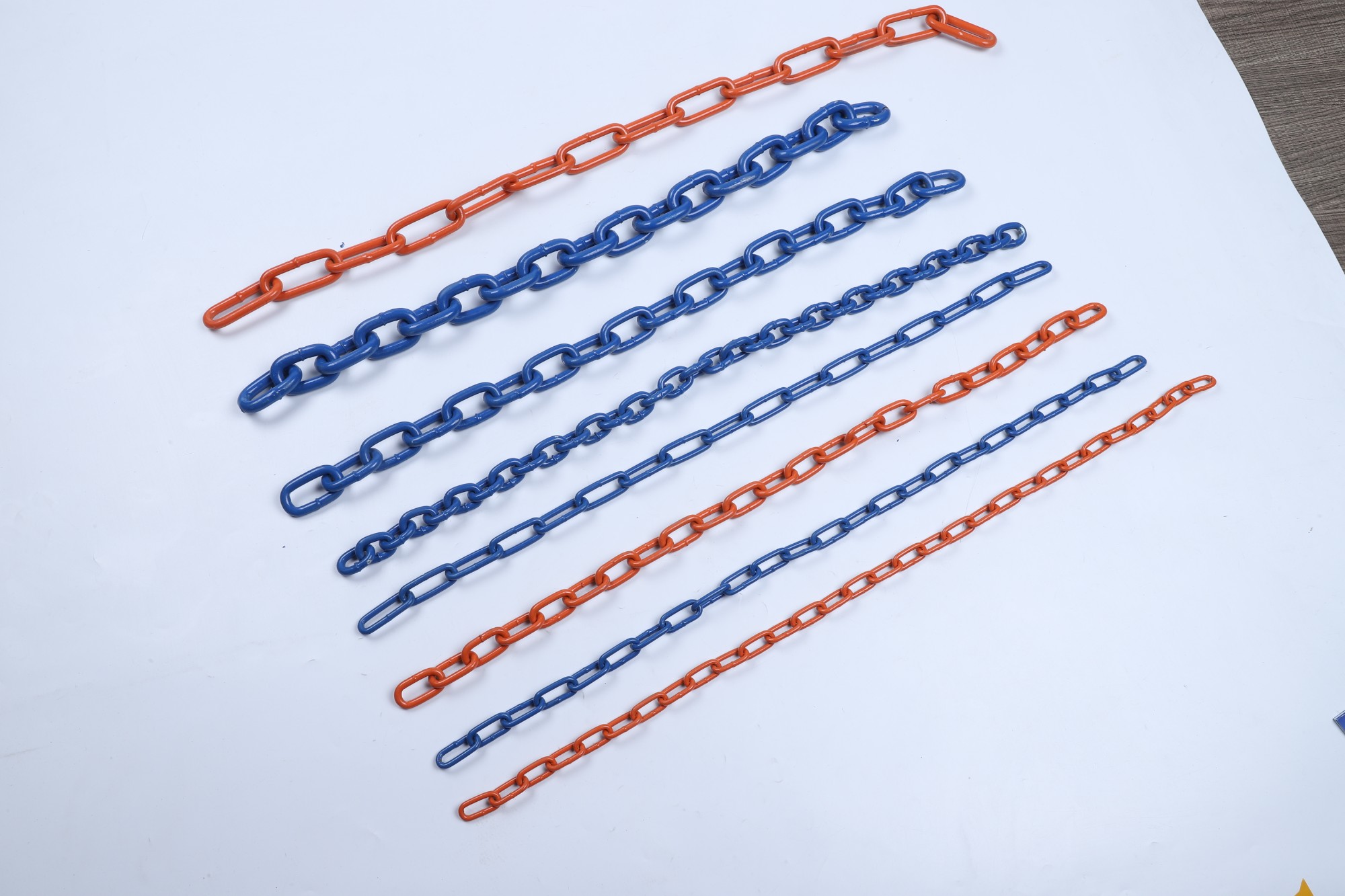

Lashing Use Round Long Link Chain

Brand WEIDELI
Product origin LINYI
Delivery time 15 days after confirm order
Supply capacity 600 tons per month

Lashing Use Round Long Link Chain is used for lashing items. Lashing use round long link chain is long link, made of automatic and semi-automatic machines. The factory have 60 sets of semi-automatic and automatic assembly lines, flush type chain braiding machine, lateral chain braiding machine, renewal holder-on welder, full-automatic welder, semi-automatic press welder, hand welder and so on. Our lashing use round long link chain is exported to global markets,, like South Asia, Middle East, South America, North America, etc.

Lashing Use Round Long Link Chain

Brief Introduction:

Finish: ZINC Place of Prigin: Linyi

Model Number: G30 Brand Name: Weideli

Structure: welded chain Function: general use

Standard or Nonstandard: Standard Material: Carbon Steel

Size: 2mm-25mm Surface treatment: zinc galvanized

Type: Short link chain Packing: sack bags, wheels, cartons etc.

Technical Data:

Link Specification				Test Load	Breaking Load	Net WT Per 200FT (KG)
D		L	W	Test Load	Breaking Load	Net WT Per 200FT (KG)
IN	MM	MM	MM	KG	KG	B.F	H.D.G
1/8	3.20	23	12	200	400	10.40	10.70
5/32	4.00	27	15	300	600	16.60	17.50
3/16	4.70	31	17	400	800	22.40	23.30
7/32	5.50	32	19	550	1100	32.00	33.00
1/4	6.35	33	21	750	1500	43.50	44.80
5/16	7.94	48	31	1200	2400	68.00	70.00
3/8	9.50	60	37	1700	3400	96.00	99.00
7/16	11.11	71	41	2300	4600	126.00	129.00
1/2	12.70	85	48.5	3000	6000	167.00	172.00
5/8	15.80	114	61.5	4700	9400	256.00	264.00
3/4	19.00	125	75	6800	13600	381.00	392.00
7/8	22.20	140	88	9250	18500	586.00	543.00
1	25.40	155	100	12150	24300	696.00	716.00

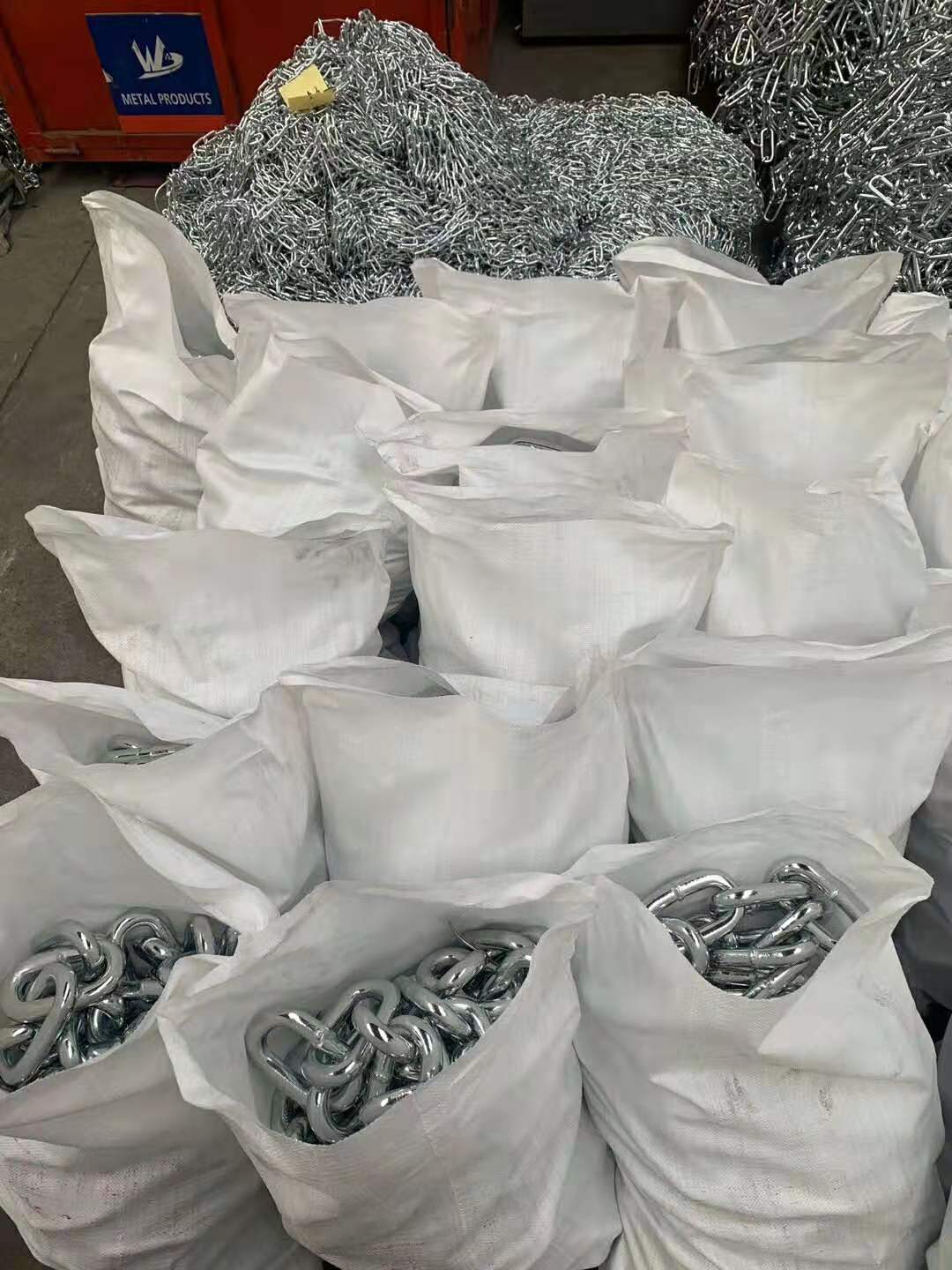

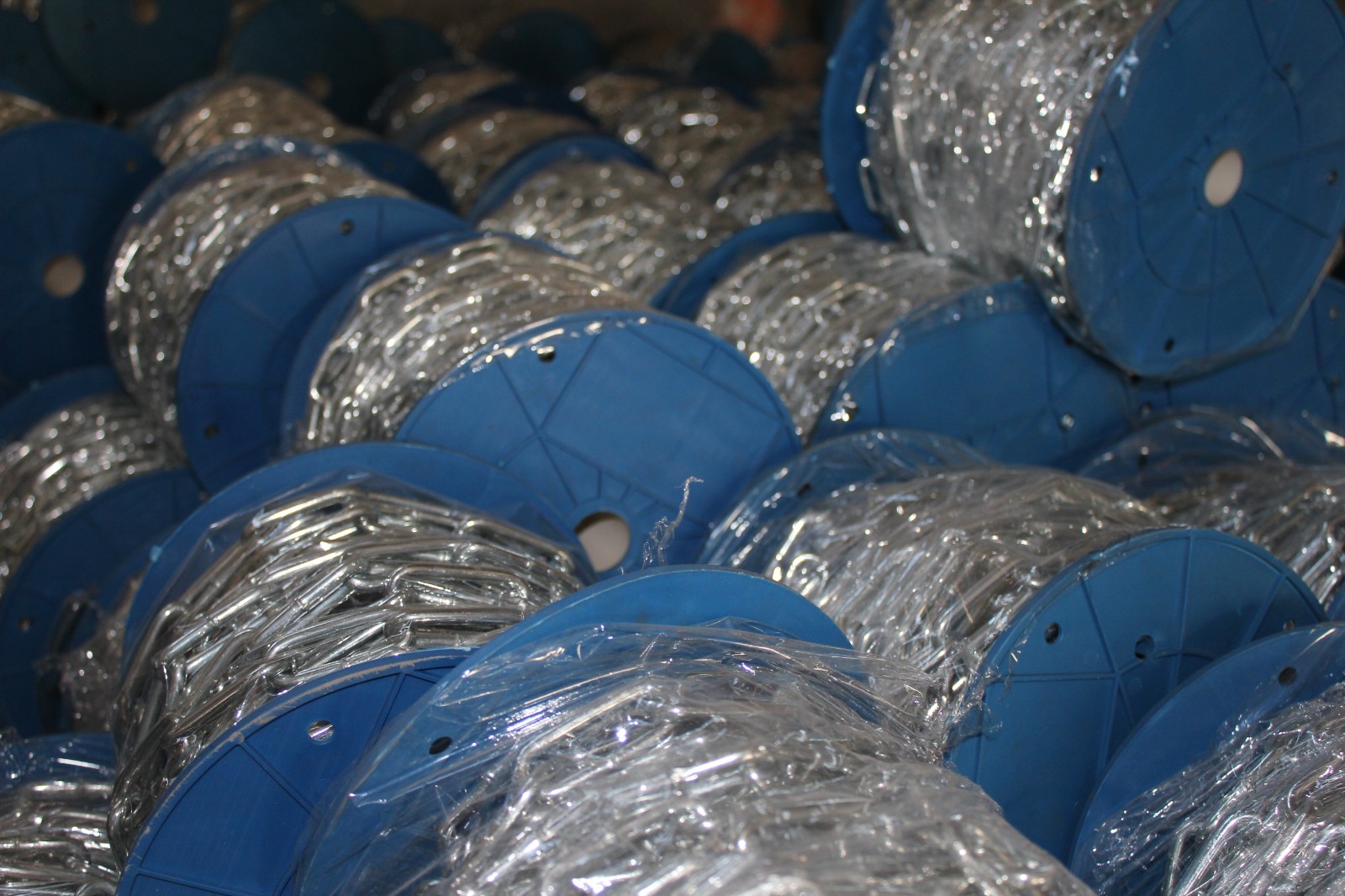

Lashing Use Round Long Link Chain has many kinds of packing, such as gunny bag, platic buckets, wooden cases, plastic reel and carbon box, woven bags and so on.
