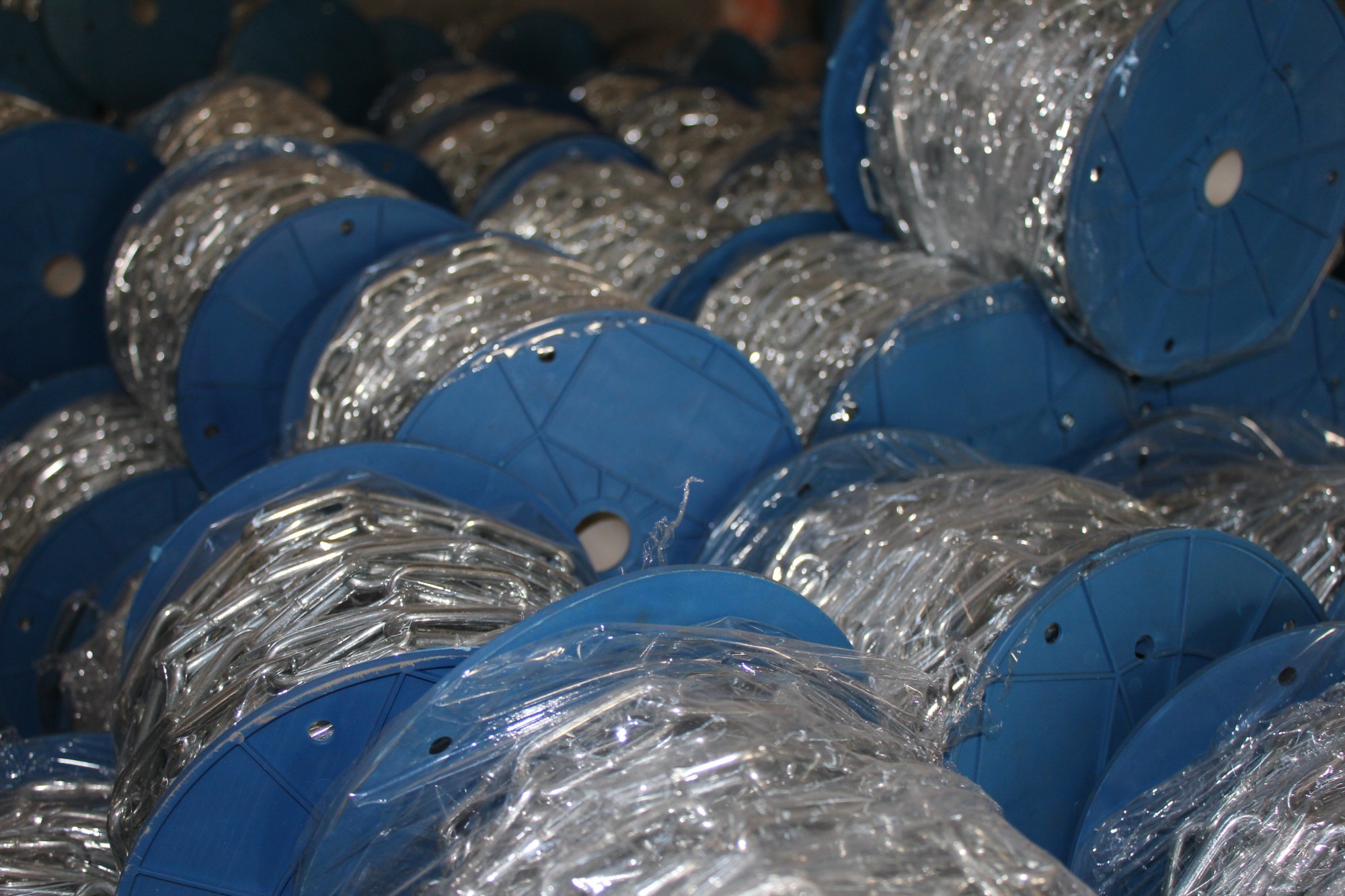

DIN 5685A Short Link Chain On Plastic Reel

DIN 5685A Short Link Chain On Plastic Reel

Brand WEIDELI
Product origin LINYI
Delivery time 15 days after confirm order
Supply capacity 600 tons per month

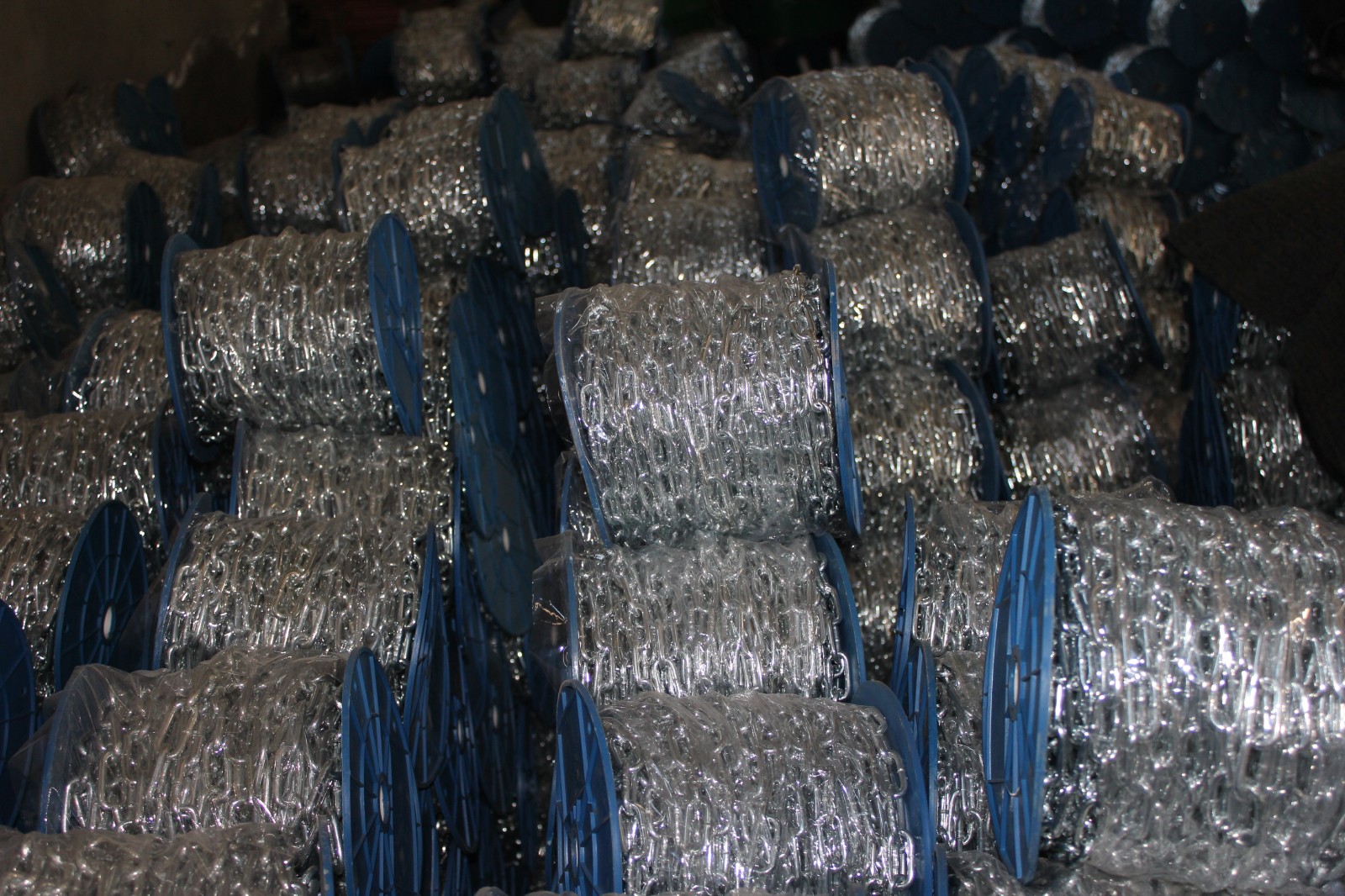

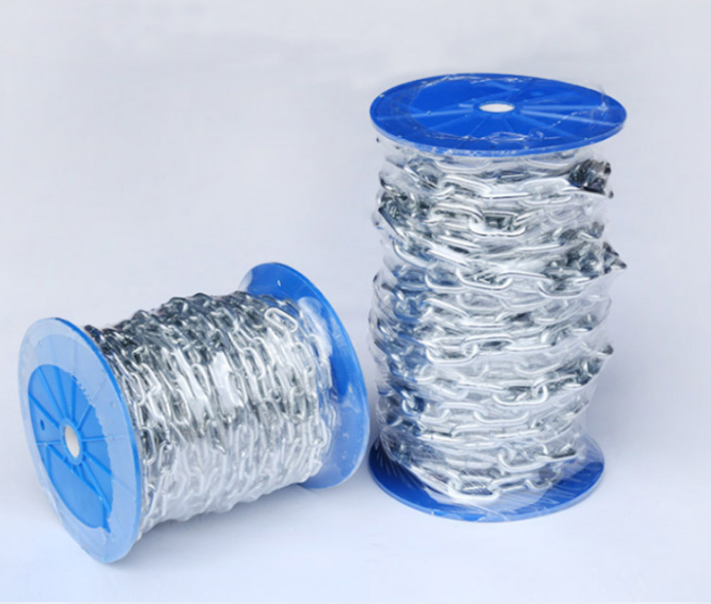

DIN5685A Short Link Chain on Plastic Reel is packed on platic reel with carbon box ourside. DIN5685A Short Link Chain on Plastic Reel is short link, made of automatic and semi-automatic machines. The factory have 60 sets of semi-automatic and automatic assembly lines, flush type chain braiding machine, lateral chain braiding machine, renewal holder-on welder, full-automatic welder, semi-automatic press welder, hand welder and so on. Our lashing use round long link chain is exported to global markets,, like Russia, Ukraine, South Africa, Spain, German, etc.

DIN5685A Short Link Chain on Plastic Reel

Brief Introduction:

Finish: ZINC Place of Prigin: Linyi

Model Number: G30 Brand Name: Weideli

Structure: welded chain Function: general use

Standard or Nonstandard: Standard Material: Carbon Steel

Size: 2mm-25mm Surface treatment: zinc galvanized

Type: Short link chain Packing: sack bags, wheels, cartons etc.

Technical Data:

Size	Inside Length		Outside Width	Weight Per 100M		Working Load	Breaking Load	Grade
MM	MM		MM	KG		N	N	Grade
2	12	22	8	7	6	500	1250	A	C
2.5	14	24	10	11	10	750	2000	A	C
3	16	26	12	16.5	15	1120	2800	A	C
3.5	18	28	14	22.5	20	1500	3850	A	C
4	19	32	16	30	27	2000	5000	A	C
4.5	20	34	18	39.5	35	2500	6300	A	C
5	21	35	20	50	43	3150	7750	A	C
5.5	23	38.5	22	60.5	52	3800	9500	A	C
6	24	42	24	73	63	4500	11500	A	C
6.5	26	45.5	26	86	74	5400	13500	A	C
7	28	49	28	100	86	6000	15000	A	C
8	32	52	32	130	100	8000	20000	A	C
8.5	34	56	34	149	125	9000	22500	A	C
9	36	59	36	165	141	10000	25000	A	C
10	40	65	40	205	175	12500	31000	A	C
11	44	72	44	250	211	15000	38000	A	C
12	48	78	48	290	255	18000	45000	A	C
13	52	82	52	345	295	21200	53000	A	C

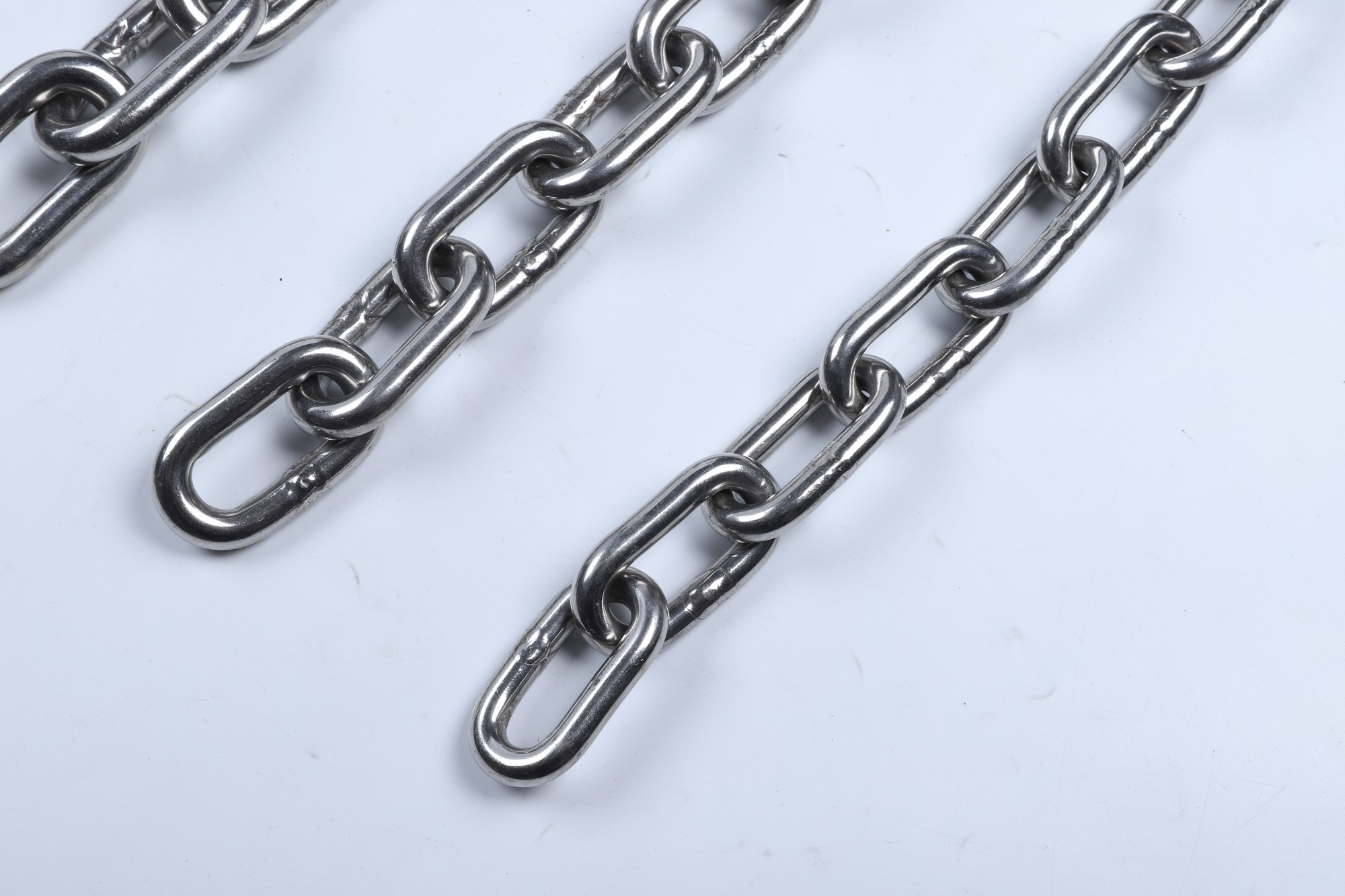

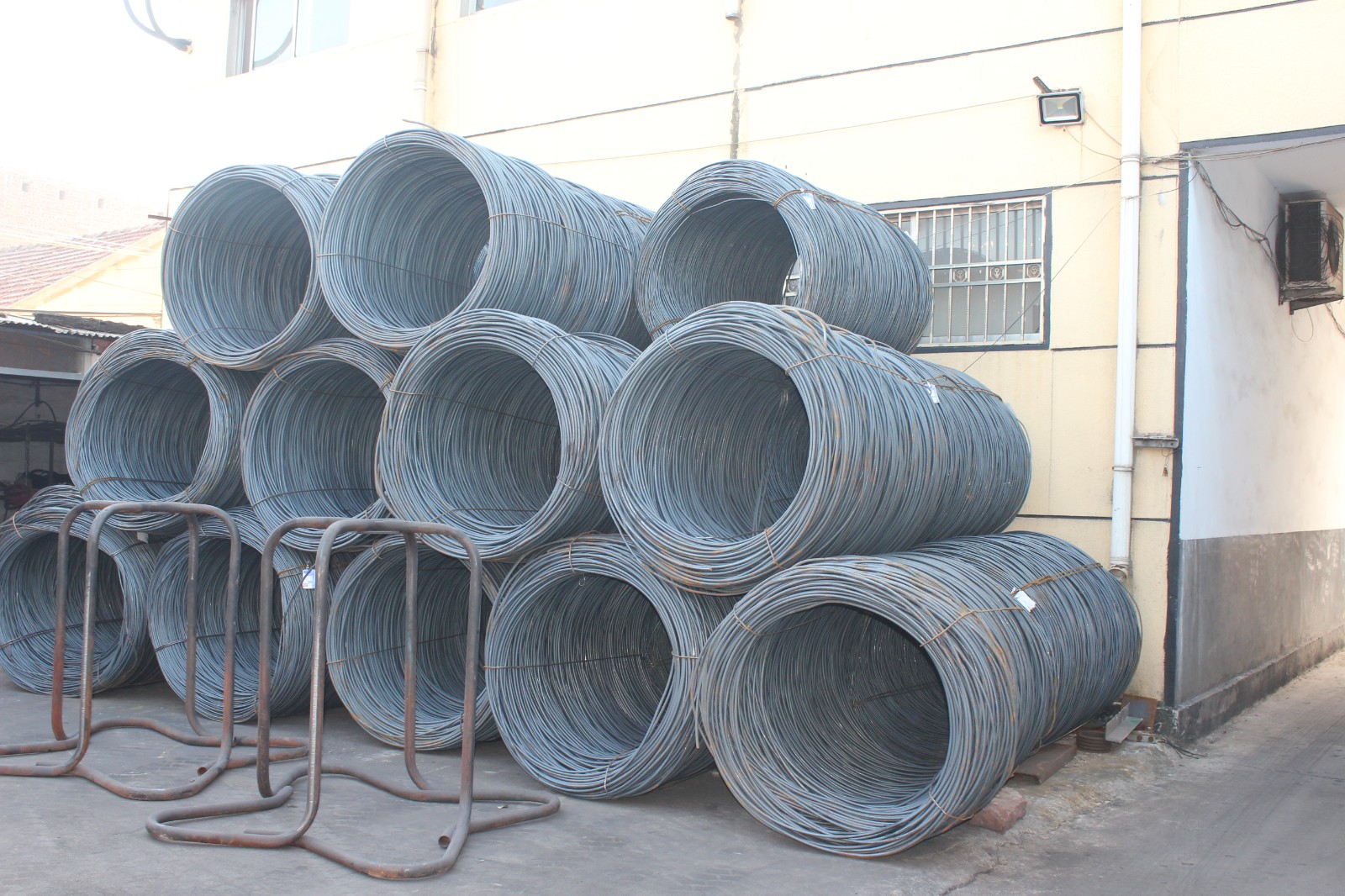

DIN5685A short link chain is only for general use, which diameter is between 2mm -25mm. DIN5685A Short Link Chain on Plastic Reel is welded link chain, with white zinc plate. Here is our raw material, low carton steel wire:

After drawing, cutting, braiding , welding and galvanizing, finished products is produced. Then, the workers pack the DIN5865A short link chain as customer's request.

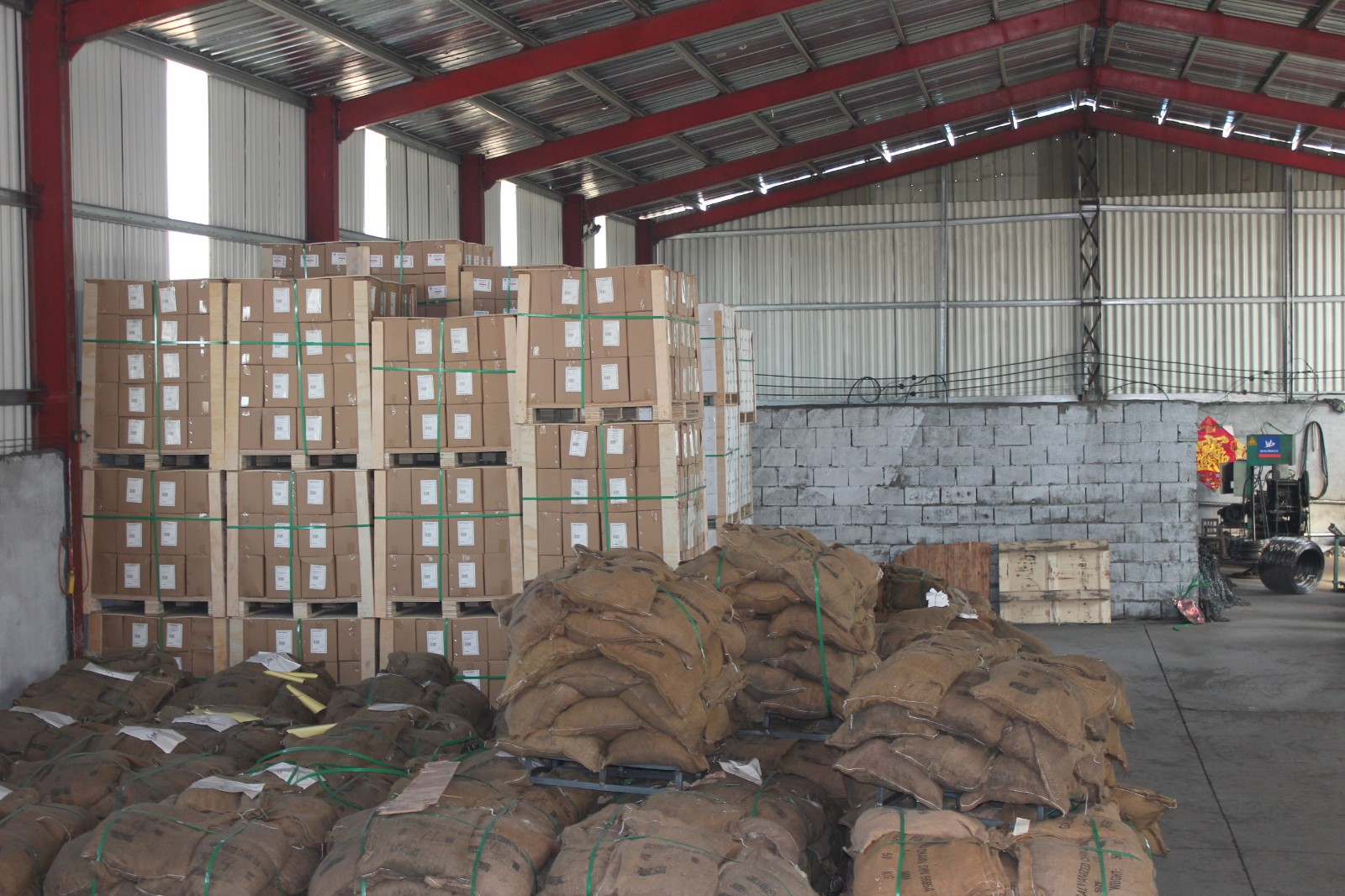

The factory has different kinds of packing, like gunny bag, plastic reel with carton box, plastic buckets, woven bags, or carton cases.
