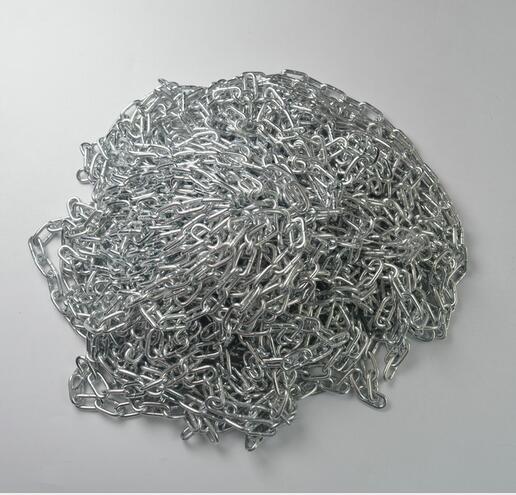

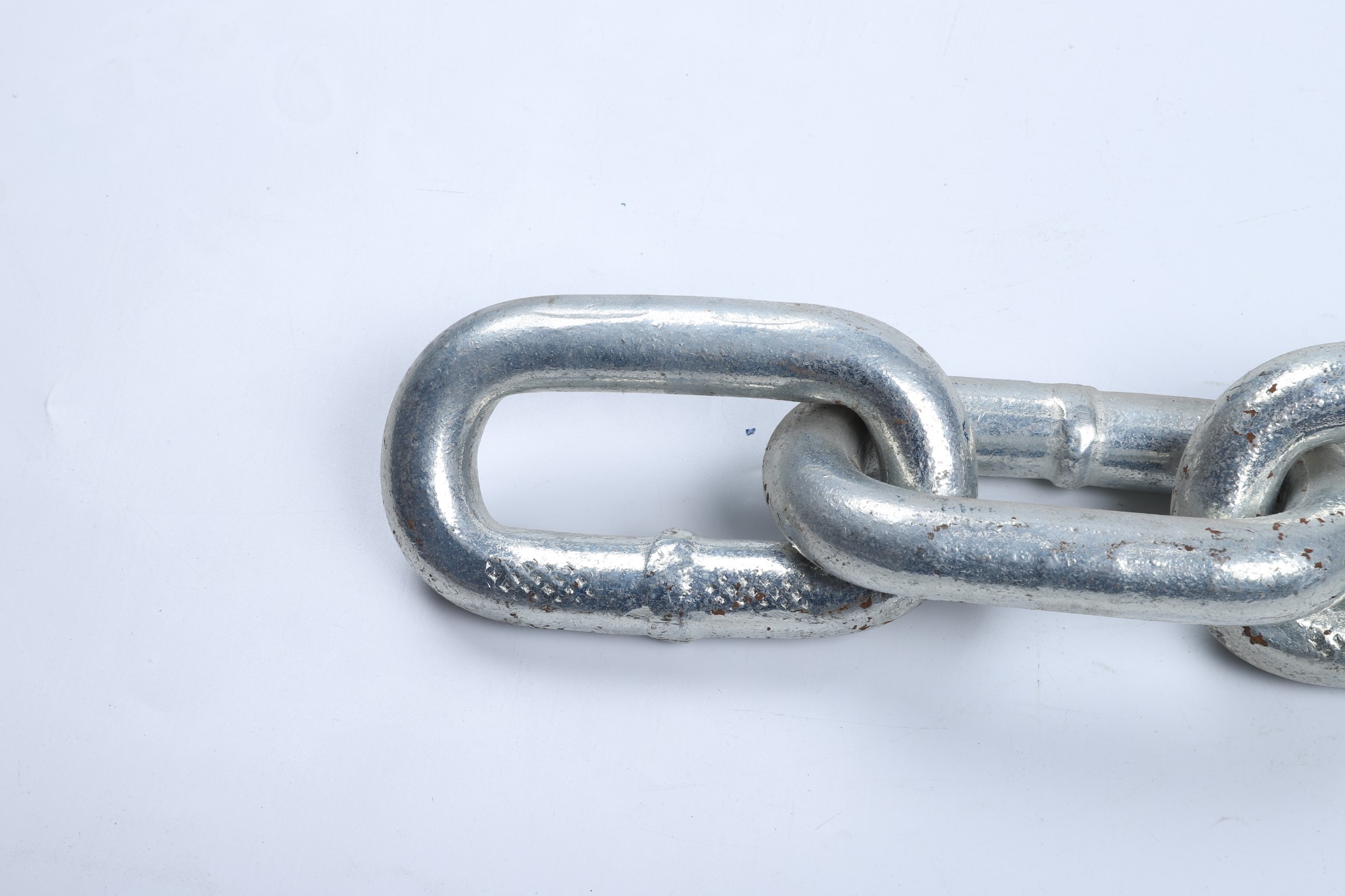

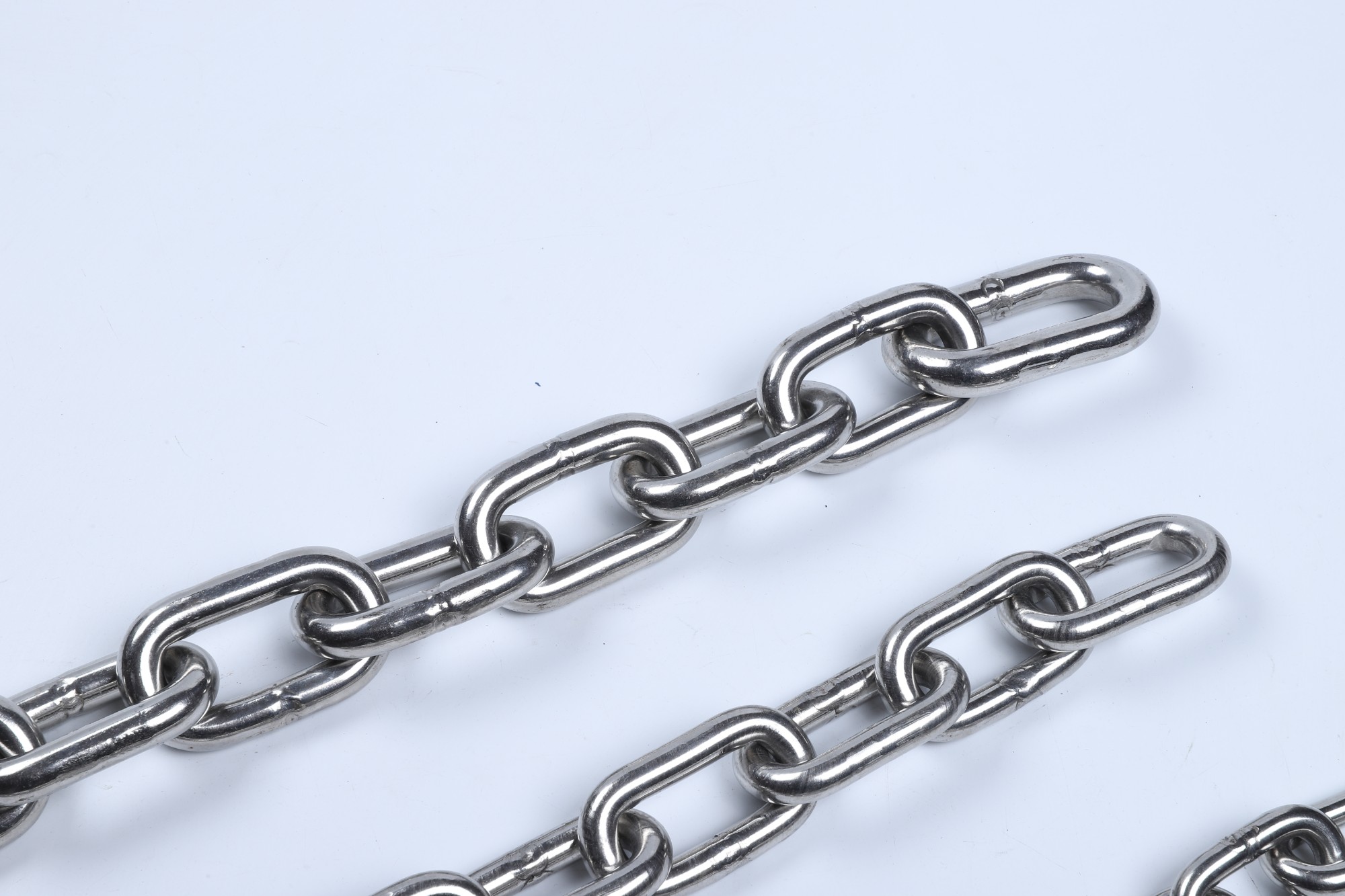

Fishing Use DIN 764 Link Chain

Brand WEIDELI
Product origin LINYI
Delivery time 15 days after confirm order
Supply capacity 600 tons per month

We can offer u all kinds of link chain: 1) DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link Chain 2) Ordinary Short,Medium Link Chain 3) Korean Standard Link Chain 4) ASTM80 Standard Link Chain 5) Norwegian Standard Link Chain 6) Australian Standard Link Chain 7) NACM1990 Standard Link Chain 8) NACM1996/2003 Standard Link Chain 9) Animal Link Chain 10) Weldless Link Chain 11) Stainless Steel chain

DIN764 Link Chain:

Technical Data:

Size		Inside Length			Inside Width	Ouside Width	Length Per 11 Links			Weight Per 100M	Breaking Load	Test Load
MM	±MM	MM	±MM		MM	MM	MM	±MM		KG	KN	KG
4	0.2	16	0.3	0.2	5	14	176	1.6	0.9	31.3	7	400
5	0.2	18	0.4	0.2	7	18.2	198	1.8	1	51.4	11.8	680
6	0.2	21	0.5	0.2	8	21.5	231	2	1.1	74	16.5	850
8	0.2	28	0.5	0.3	11	29	308	2.2	1.2	131.5	32	1680
10	0.3	35	0.6	0.3	14	36	385	2.7	1.5	200	50	2630
12	0.3	42	0.6	0.3	16	41	462	3.2	1.8	298	70	3680
13	0.4	45	0.7	0.4	18	47	495	3.5	2	350	80	4200
14	0.45	49	0.75	0.45	20	48	539	3.8	2	406	92	4830
16	0.5	56	0.9	0.5	22	58	616	4.3	2.5	520	125	6700
18	0.8	63	1	0.5	24	65	693	4.7	2.8	650	160	8400
20	1	70	1.1	0.6	27	72	770	5.4	3.2	820	200	10000
23	1.2	80	1.3	0.7	31	83	880	6.2	3.5	1100	250	13000
26	1.3	91	1.5	0.8	35	94	1001	7	4	1400	320	16000
